Stand-up Pouch
Three Types of Stand-up Pouch

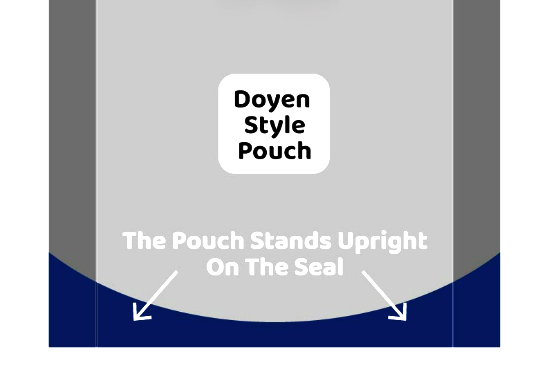

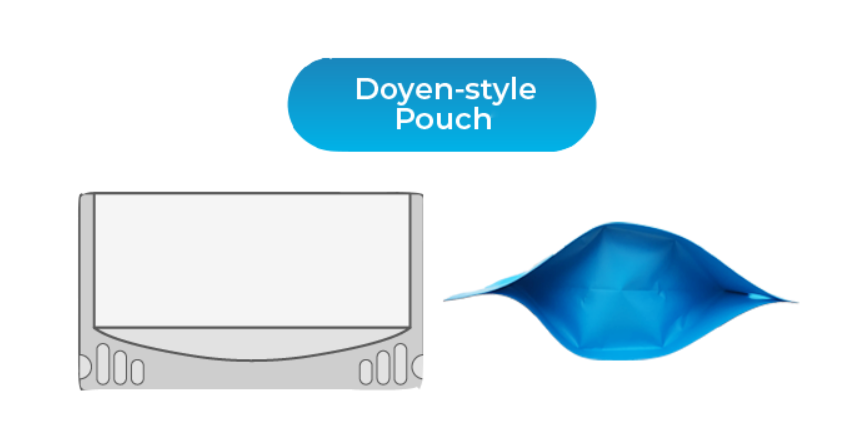

Doyen Bottom Pouch (also known as Round Bottom Gusset Pouch or Doypack)
The Doyen bottom pouch is the most common style among stand-up pouches in the market. Characterized by a U-shaped gusset and round bottom with corner-sealed edges, it allows the pouch to stand upright on shelves. In this design, the product’s weight is supported by the bottom seal, making it ideal for lightweight items (typically less than 1 pound or 0.45 kg).
Due to its structure, heavier products may compromise the pouch’s appearance by causing the bottom seal to collapse. Standard Doyen pouches are usually smaller in size. Producing this style generally requires a custom die, adding a slight additional manufacturing cost. However, the Doyen pouch is particularly suitable for showcasing smaller amounts of product while maintaining a shorter overall height.

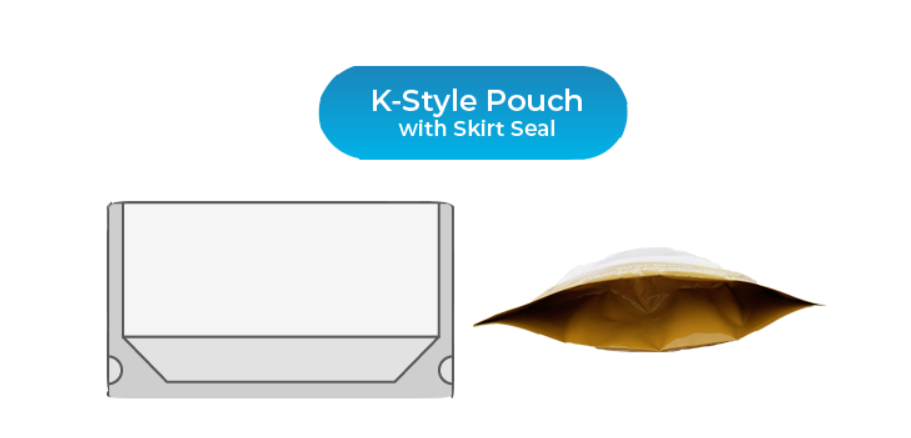

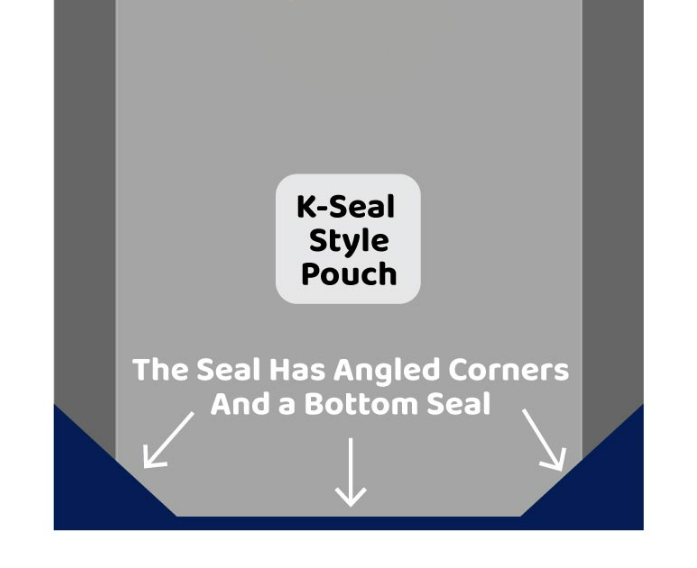

K-Seal Bottom Pouch
As demand for greater capacity and heavier product packaging increases, the K-Seal bottom pouch becomes the preferred choice for products weighing between 1 to 5 pounds (0.45–2.25 kg).
The K-shaped seals at the bottom of the pouch provide greater strength and stability, allowing it to hold heavier products without compromising the pouch’s appearance or ability to stand upright. Unlike the Doyen style, K-Seal pouches typically do not require a custom die for production. In our experience, the K-Seal pouch expands less at the bottom, so for the same product volume, it may require a slightly taller pouch compared to a Doyen pouch. This type is especially suitable for powders and granular products.

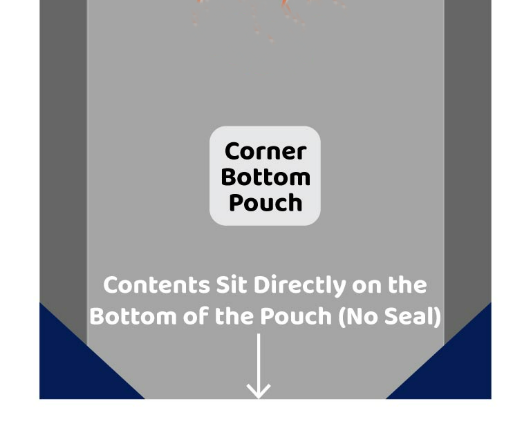

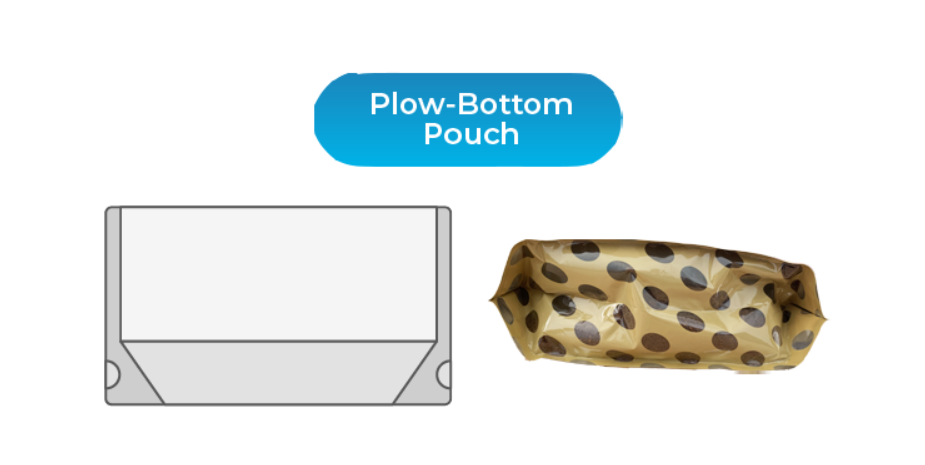

Plow Bottom Pouch (also known as Corner Bottom or Folded Bottom Pouch)
Also referred to as the Corner Bottom or Folded Bottom pouch, the Plow Bottom pouch is highly recommended for packaging products weighing over 5 pounds (2.3 kg and above).
In this design, the bottom is folded rather than sealed, allowing the product to sit flat directly on the base of the pouch. The side seals provide structure, while the product’s weight naturally supports the pouch’s upright position without the need for a bottom seal. This pouch style has gained significant popularity in the food industry for packaging granular products such as salt, sugar, and similar items.
Although designed for heavier items, Plow Bottom pouches are versatile—lighter products can also use this style effectively. For instance, an 8 oz (227 g) bag of cranberries may successfully be packaged in a Plow Bottom pouch, demonstrating its adaptability.
The Components of a Stand-up Pouch
Depending on the application, a stand-up pouch can be equipped with a wide variety of components. For the right component selection, you should ask yourself a few questions beforehand:
- Will the pouch be standing or hanging at the POS?
- Will the pouch be resealed after it has been opened for the first time?
- Must the contents of the pouch be visible at the POS?
- Is the pouch a refill?
- Are aromatic products such as coffee or tea filled?
Based on these questions, you can find out whether you need the following components or not:
- Certified Child Resistant
Make sure little hands can’t get into things they shouldn’t with this resealable packaging. - Zipper Resealable Stand Up Pouches
Always one of the best product options on any shelf. These pouches look great, but also are also widely functional packaging, too. - Powder-Resistant Zipper
Reseal without any mess. Complete closure so nothing escapes from your packaging. - Press To Close
If you’re selling fruit snacks or crackers, which packaging needs to be reclosable, this is an easy way to keep products fresh. - Tear Notch
A tear notch makes packages produced on vertical form/fill/seal baggers easy to open. The small slit in the end seal lets consumers tear the film for an easy openable product.
Additional Stand Up Pouch Features
- Stand Up Pouches with Windows – Add a clear or clouded window so consumers can see what’s inside your packaging.
- Hang Holes – Hang your packaging on retail shelving with our round or sombrero hang holes.

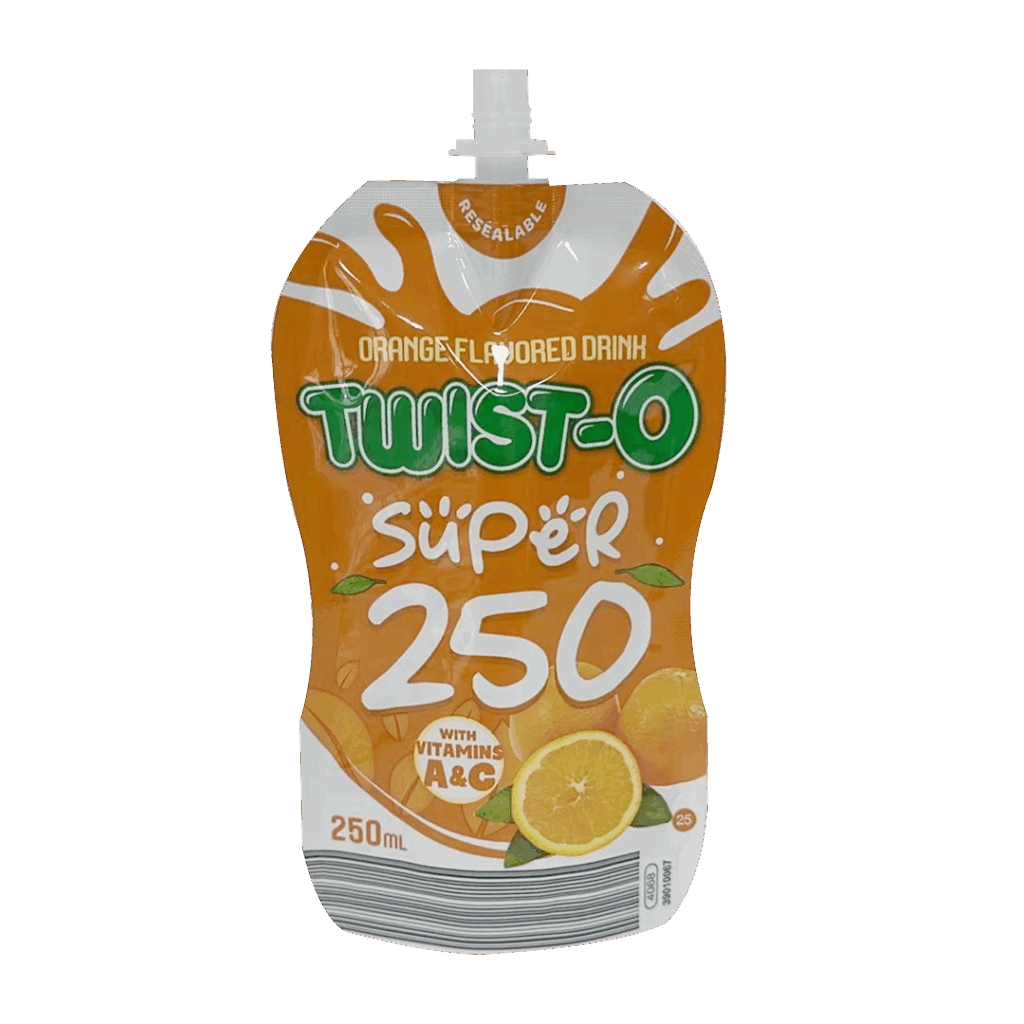

- Spout for refilling containers (spout bag / spout pouch).
- Aroma valve to protect the aroma of coffee or tea.

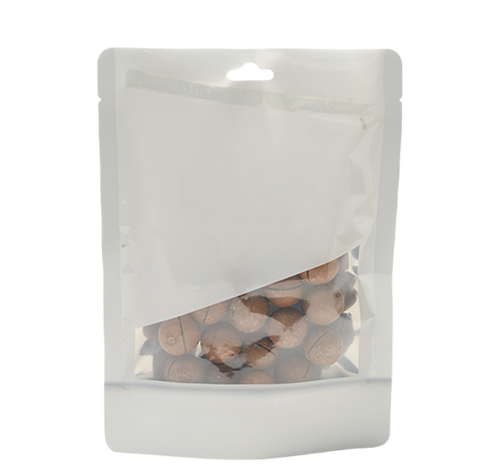

Stand up pouch with viewing window
Pouches with a viewing window are particularly suitable for optimum presentation of goods at the point of sale. The viewing window is highly transparent, can be specified in variable size and all barrier properties of the material are of course still fully retained.
